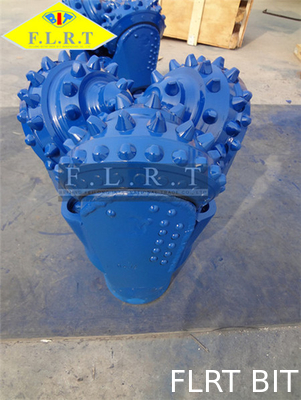

12 1/4" Tricone Rock Bit IADC 515G Gauge Protection With Sealed Roller Bearing

12 1/4" Tricone Rock Bit IADC 515G Gauge Protection With Sealed Roller Bearing
12 1/4" Tricone Rock Bit IADC 515G Gauge Protection With Sealed Roller Bearing

Large Image :  12 1/4" Tricone Rock Bit IADC 515G Gauge Protection With Sealed Roller Bearing

Product Details:
Place of Origin: China
Brand Name: FLRT
Certification: API-7-1, ISO 9001:2008
Model Number: 12 1/4" FG515G
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Packaging Details: plywood box / iron box
Delivery Time: 5~45 workdays
Supply Ability: 300pcs per quarter
Detailed Product Description
Name: TCI Tricone Bit Cutting Material: TCI
Standard: API-7-1, ISO 9001:2008 Series: FG
IADC: 515 G: Reinforced Gauge Protection
TCI: Tungsten Carbide Insert Insert Shape: Chiseled
High Light:

hard rock drill bits

,

hdd drill bits

12 1/4" TRC Bit , IADC 515G , TCI Bit , Gauge Protection , Sealed Roller Bearing​





RECOMMENDED DRILLING PARAMETERS FOR APPLICATION



Types & IADC Code 417

437

447

517

527

517

527

537

547

617

627

637



WOB KN/mm(Bit Dia.) 0.4~0.9 0.4~0.9 0.35~1.0 0.35~1.0 0.5~1.0 0.6~1.1 0.7~1.2
Lb/in. (Bit Dia.) 2285~5142 2285~5142 2000~5714 2000~5714 2857~5714 3428~6285 4000~6857
Rotation Speed (Rpm) 140~60 240~70 125~50 ~60 110~50 100~40 80~4



Lubrication of seals

- Seals must be lubricated to prevent high wear rates and excessive temperatures that could lead to seal material failures. Lubricant for the bearings also lubricates the seals.



Lubrication systems

- Lubricants play a vital role in bearing performance. They provide lubrication for both bearings and seals, and they provide a medium for heat transfer away from the bearings. To achieve these functions, lubricants are specially engineered and continually improved. Lubrication systems are engineered to provide reserve storage, positive delivery to the bearing system, capacity for thermal expansion, and pressure equalization with fluids on the bit exterior.



- Lubrication systems include a resupply reservoir large enough to ensure availability of lubricant for all lubrication functions throughout the life of the bit. A small positive pressure differential in the system ensures flow from reservoir to bearings. The system is vented to equalize internal and external reservoir pressures. Without equalization, a pressure differential between bit exterior and interior could be sufficient to cause seal damage, leading to bearing failure.
