Body Type: | Steel | Cutting Material: | PDC |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Drill Center: | Two |
Formation: | Plasticity | Application: | Well-bore Reaming Operation |
High Light: | impregnated diamond bit,natural diamond bit |

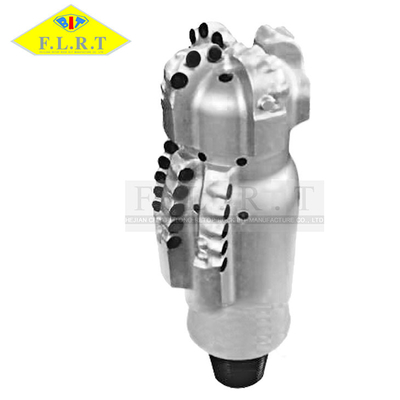

Bi-center Steel Body PDC Bit , Well-bore Reaming Operation , Polycrystalline Diamond
FSB Series (Steel Body Bi-center Bit)
Bi-center Steel Body PDC Bit (Polycrystalline Diamond Compact bit) Brief Description
* Wellbore reaming operation
Special configuration and unique cutters layout make the bit applicable for reaming or drilling in plasticity formation where wellbore shrinkage happened.
* Bi-center structure
The bit comprises two parts, the front pilot cutters and the reaming cutters. The whole bit body is an integrated alloy forging processed by advanced precision numerical controlled processing equipment.
Product Specifications | ||||||||
Pass through(in.) | 4 1/2 | 5 7/8 | 6 | 8 1/2 | 9 1/2 | 9 7/8 | 10 1/2 | 12 1/4 |
Reaming size(in.) | 5 3/4 | 6 5/8 | 7 | 9 5/8 | 10 5/8 | 10 3/4 | 12 1/4 | 13 1/2 |
Cutter size(mm) | ⌀13 | ⌀13 | ⌀13 | ⌀13 | ⌀13 | ⌀13 | ⌀16 | ⌀16 |
Gage length(in.) | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 2 1/2 | 2 1/2 | 6 5/8 | 6 5/8 |
API reg. pin(in) | 2 7/8 | 3 1/2 | 3 1/2 | 4 1/2 | 6 5/8 | 6 5/8 | 6 5/8 | 6 5/8 |
Hydraulic flow rate(L/s) | 10~20 | 10~30 | 15~38 | 25~45 | 28~48 | 28~48 | 30~50 | 35~55 |
Hydraulic flow rate(gpm) | 160~320 | 160~320 | 160~320 | 160~320 | 160~320 | 160~320 | 160~320 | 160~320 |
WOB(KN) | 9~35 | 25~50 | 25~60 | 30~120 | 35~130 | 35~130 | 40~150 | 45~200 |
WOB(KLbs) | 2~8 | 6~11 | 6~14 | 8~27 | 8~29 | 8 `29 | 9~35 | 10~45 |
