Body Type: | Matrix | Cutting Material: | PDC |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FM |
Main Cutter Size: | 13mm | IADC: | M332 |
High Light: | impregnated diamond bit,natural diamond bit |

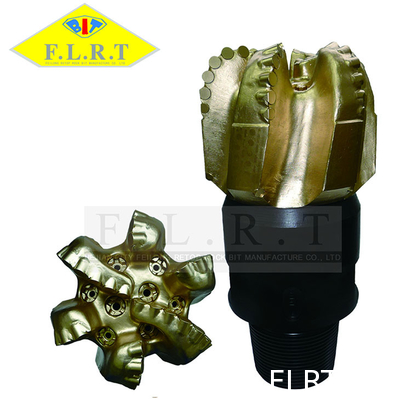

8 1/2" FM13065IU , Matrix Body PDC Bit , IADC M332 , High ROP Drilling Bit
FM series
Matrix body PDC drill bit
* Medium to medium hard formation drilling
Products with optimized profile is suitable for drilling medium to medium hard homogeneous formations with low abrasiveness.
* Cutting structure
Asymmetrical evolute blade cutters placement prevents the bit whirl. Primary and secondary cutting structure design increases impact strength of the bit.
* Hydraulic system
CFD hydraulic balance design results in better bit cleaning and cutting removal.
Product Specifications | ||||
Bit Size (in.) | 6 1/2 | 8 1/2 | 9 1/2 | 12 1/4 |
IADC Code | M332 | M332 | M332 | M332 |
Number of Blades | 6 | 6 | 6 | 6 |
Number of Nozzles | 6 | 8 | 8 | 10 |
Total Number of Cutters | 35 | 45 | 53 | 67 |
Primary Cutter Size(mm) | 13 | 13 | 13 | 13 |
Standard Gauge Length | 50mm | 75mm | 85mm | 100mm |
API Reg. Pin Connex.(in.) | 3 1/2 | 4 1/2 | 6 5/8 | 6 5/8 |
Recommended Operation Parameters | ||||
Bit Size (in.) | 6 1/2 | 8 1/2 | 9 1/2 | 12 1/4 |
Hydraulic Flow Rate(L/s) | 25~35 | 25~35 | 25~35 | 44~60 |
Hydraulic Flow Rate(Gpm) | 390~550 | 390~550 | 390~550 | 690~950 |
Rotation Speed(Rpm) | 50~500 | 50~500 | 50~500 | 50~500 |
WOB(KN) | 30~100 | 30~100 | 50~160 | 50~160 |
WOB(KLbs) | 8~23 | 8~23 | 12~36 | 12~36 |
Maximum WOB(KN) | 100 | 100 | 160 | 160 |
Maximum WOB(KLbs) | 23 | 23 | 36 | 36 |
