Product Details:
Payment & Shipping Terms:
|
Bearing Type: | Sealed Journal Bearing | Cutting Material: | Steel Tooth / Milled Tooth |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FSA |
IADC: | 127 | Name: | Mill Tooth Tricone Bit |
High Light: | rotary drill bit,steel tooth rotary bits |

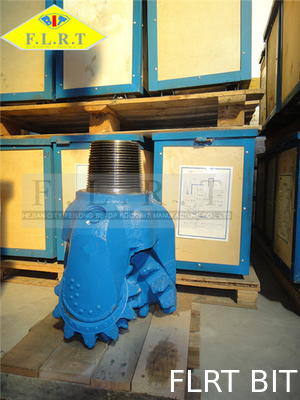

13 5/8" FSA127G , Steel Tooth Tricone Bit , Sealed Journal Bearing , Milled Tooth Bit
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
Types & IADC Code |
116 117 |
126 127 |
136 137 |
216 217 |
246 247 |
326 327 |
|
WOB | KN/mm(Bit Dia.) | 0.48~1.0 | 0.48~1.0 | 0.48~1.0 | 0.4~1.0 | 0.4~1.0 | 0.55~0.85 |
Lb/in. (Bit Dia.) | 2742~5714 | 2742~5714 | 2742~5714 | 2285~5714 | 2285~5714 | 3140~4860 | |
Rotation Speed (Rpm) | 160~80 | 150~70 | 130~60 | 100~60 | 80~50 | 60~45 |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
Contact Person: Jade
Tel: 0086-10-63405086
