Product Details:
Payment & Shipping Terms:
|
| Name: | Oil Well Drill Bit | Cutting Material: | TCI |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FSA |
| IADC: | 517 | Supplementary Features 1: | G : Reinforced Gauge Protection |
| Supplementary Features 2: | T : Trimming Cutter | ||
| High Light: | roller cone drill bit,tricone rock roller bits |
||

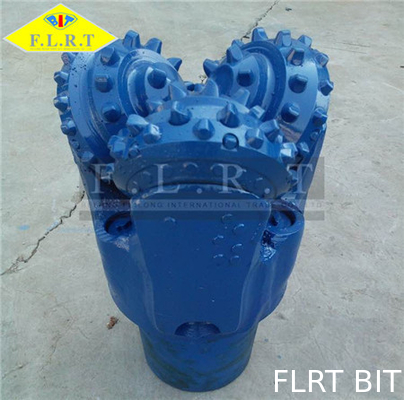

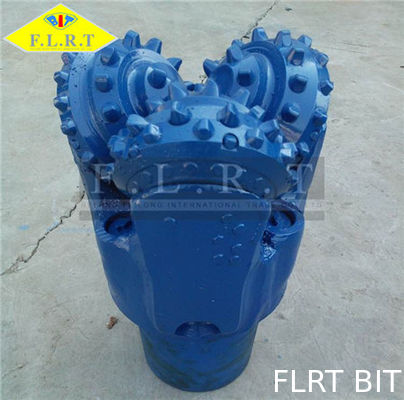

9 7/8" FSA517GT , TCI Bit , Sealed Friction Bearing , Tricone Roller Bit
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 417 |
437 447 |
517 527 |
537 547 |
617 627 |
637 | |
| WOB | KN/mm(Bit Dia.) | 0.4~0.9 | 0.4~0.9 | 0.35~1.0 | 0.5~1.0 | 0.6~1.1 | 0.7~1.2 |
| Lb/in. (Bit Dia.) | 2285~5142 | 2285~5142 | 2000~5714 | 2857~5714 | 3428~6285 | 4000~6857 | |
| Rotation Speed (Rpm) | 140~60 | 140~60 | 125~50 | 110~50 | 100~40 | 80~40 | |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
ROLLER CONE BIT CONE DESIGN
Cone slippage can also be attained by offsetting the axes of the cones. This is often used in soft formation bits . To achieve an offset the journals must be angled slightly away from the centre. Hard formation bits have little or no offset to minimise slippage and rely on grinding and crushing action alone.
