Product Details:
Payment & Shipping Terms:
|
Bearing Type: | Sealed Journal Bearing With Gauge Protection | Cutting Material: | Tungsten Carbide |
---|---|---|---|
Standard: | API-7-1, ISO 9001:2008 | Series: | FHO |
IADC: | 537 | Application 1: | Trenchless |
Application 2: | Hole Opener Drilling | ||
High Light: | hole opener drilling,hdd rock reamers |

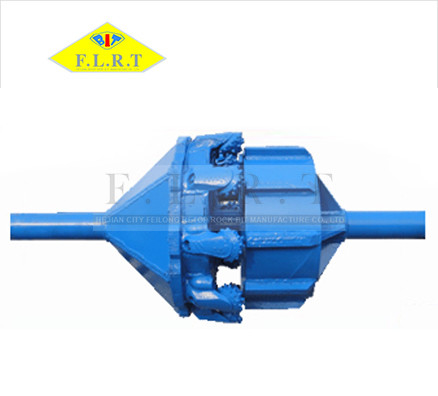

HDD Hole Openers , Reamer , IADC 537 , Single Cone Bit , Trenchless , Medium Hard Rock Reamer
1. Hole openers are designed for the enlargement of pilot holes and large hole applications. They are also used for road and river crossing application.
2. The hole openers are manufactured from AISI 4145H fully heat-treated alloy steel. All are available with carbide-milled teeth and insert cutters. Arms and cutters are hardfaced for protection in three different designs for varying conditions and rock formations. The design of the hole opener allows for field-changing the cutters. They has a wide range of hole opener types, including.
Cutting Structure
Combined by single TCI cone bit, IADC 537.
Seal and Lubrication
High performance HNBR O-ring for bearing seal and advanced grease for lubrication.
Product Application
It is suitable for the large size well, HDD, trenchless and infrastructure applications.
Specifications:
1. Hole opener rock bit
2. fully heat-treated alloy steel.
3. With cutters for Soft,Medium Hard format
It is suitable for the large size well, mining and infrastructure applications.
Size | Bit Type |
|
In. | mm | |
28 | 711.2 | 117, 127, 517, 537, 617, 637 |
32 | 812.8 | 117, 127, 517, 537, 617, 637 |
38 | 914.4 | 117, 127, 517, 537, 617, 637 |
