Product Details:
Payment & Shipping Terms:
|
| Bearing Type: | Sealed Journal Bearing | Cutting Material: | Steel Tooth / Milled Tooth |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FA |
| IADC: | 216 | Application: | Oil Well Drilling |
| High Light: | mill tooth tricone bit,steel tooth rotary bits |
||

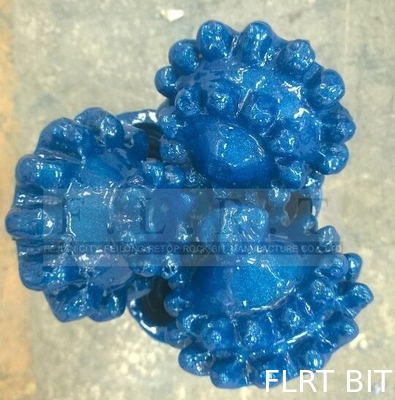

4 1/4" FA216 , Steel Tooth Tricone Bit , Sealed Journal Bearing , Milled Tooth Bit , Drilling Bit , Deeper Section
PRODUCT SPECIFICATIONS
Bit Size: 4 1/4 inch ( 108 mm)
IADC: 216
SERIES: FA
Tooth type: Milled Tooth / Steel Tooth
Connection: 2 3/8 inch API REG PIN
Nozzle: three jet(side) nozzles
Bit Weight: 6 kgs
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code |
116 117 |
126 127 |
136 137 |
216 217 |
246 247 |
326 327 |
|
| WOB | KN/mm(Bit Dia.) | 0.48~1.0 | 0.48~1.0 | 0.48~1.0 | 0.4~1.0 | 0.4~1.0 | 0.55~0.85 |
| Lb/in. (Bit Dia.) | 2742~5714 | 2742~5714 | 2742~5714 | 2285~5714 | 2285~5714 | 3140~4860 | |
| Rotation Speed (Rpm) | 160~80 | 150~70 | 130~60 | 100~60 | 80~50 | 60~45 | |
Friction bearing
- Nose and outer bearing replaced by friction bearing
Bearing lubrication
- Bearing classified as sealed or non sealed
- Non sealed are lubricated by mud system through the face where the cone meets the journal
- Sealed are lubricated by custom made system built within the leg body
- Lubrication by mud is generally recommended
- Sealed bearing consists of bearing, seal, reservoir and pressure compensator
- The seal is an O-ring type placed at the contact between the cone and the bearing lowermost point
- The reservoir provides lubricants (special grease) to the bearing through a passageway in the leg
- Pressure compensator has a flexible diaphragm operates within a metal protector
- Maintains equal pressure inside and outside bearings
- Equipped with a pressure relief valve
- It protect the bearing seal when heat cause breakdown of grease into gaseous components
Contact Person: Jade
Tel: 0086-10-63405086
