Product Details:
Payment & Shipping Terms:
|
| Bearing Type: | Double Sealed Journal Bearing | Cutting Material: | TCI |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FA |
| Application 1: | Oil Well Drilling / Gas Well Drilling | Application 2: | Geothermal Well Drilling |
| IADC: | 437 | ||
| High Light: | three cone bit,roller cone drill bit |
||

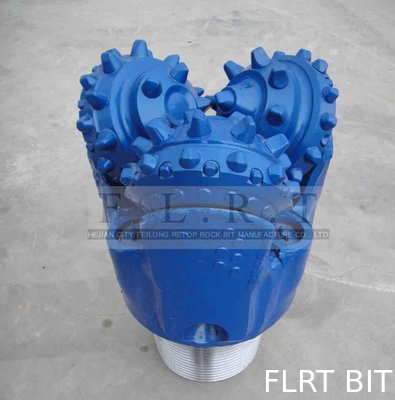

9 5/8" FA437GT , Tricone Roller Bit , TCI Drill Bit , Oil Well Drill Bit
PRODUCT SPECIFICATIONGS
Bit Size : 9 5/8 inch ( 244.5 mm )
IADC : 4 3 7
SERIES: FA
Tooth type : ( TCI ) Tungsten Carbide Insert
Connection : 6 5/8 inch API REG PIN
Nozzle : Three jet (side) nozzles,
Bit Weight: 67 kgs
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 117 | 127 |
437 447 |
517 527 |
537 547 |
617 627 |
637
|
|
| WOB | KN/mm(Bit Dia.) | 0.35~0.8 | 0.35~0.9 | 0.35~0.9 | 0.35~1.0 | 0.45~0.95 | 0.45~1.1 | 0.5~1.1 |
| Lb/in. (Bit Dia.) | 2000~4271 | 2000~5142 | 2000~5142 | 2000~5714 | 2571~5714 | 2571~6285 | 2857~6285 | |
| Rotation Speed (Rpm) | 240~80 | 240~70 | 180~80 | 220~60 | 220~50 | 200~50 | 180~40 | |
The above chart represents commonly available sizes and types, we do produce other sizes and types of rock bits which do not appear on this list. Please contact us for more information.
