Product Details:
Payment & Shipping Terms:
|
| Bearing Type: | Sealed Roller Bearing | Cutting Material: | TCI |
|---|---|---|---|
| Standard: | API-7-1, ISO 9001:2008 | Series: | FG |
| IADC: | 435 | Supplementary Features 1: | G : Reinforced Gauge Protection |
| Supplementary Features 2: | T : Trimming Cutter | ||
| High Light: | roller cone drill bit,tricone rock roller bits |
||

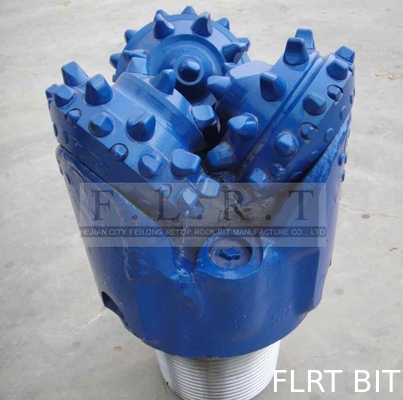

9 7/8" FG435GT , TCI Bit , Sealed Roller Bearing , Tricone Roller Bit
PRODUCT SPECIFICATIONS
Bit Size : 8 1/2 inch (215.9mm)
IADC : 435
SERIES : FG
Tooth type : ( TCI ) Tungsten Carbide Insert
Connection : 6 5/8 inch API REG PIN
Nozzle : three jet (side) nozzles
Bit Weight : 75 kgs
SIZE AVAILABLE
From 3 7/8inch to 36inch
RECOMMENDED DRILLING PARAMETERS FOR APPLICATION
| Types & IADC Code | 415 |
435 445 |
515 525 |
535 545 |
615 625 |
635 | |
| WOB | KN/mm(Bit Dia.) | 0.35~0.95 | 0.35~0.95 | 0.4~0.7 | 0.4~0.7 | 0.45~1.1 | 0.5~1.2 |
| Lb/in. (Bit Dia.) | 2000~5428 | 2000~5428 | 2285~4000 | 2285~4000 | 2571~6285 | 2857~6857 | |
| Rotation Speed (Rpm) | 150~60 | 150~60 | 140~80 | 120~80 | 110~60 | 100~50 | |
